Fittings / Mark VIII® / H849R-16-12-SS316L

Socketweld/braze Tube Tailpiece Reducer

Data sheet
[wp_objects_pdf]
American Engineering Trusted Wordwide ®

DATA SHEET

H849R-16-12-SS316L
11/19/2025 2:10 AM

Product Category H849R-16-12-SS316L
Part Description Socketweld/braze Tube Tailpiece Reducer

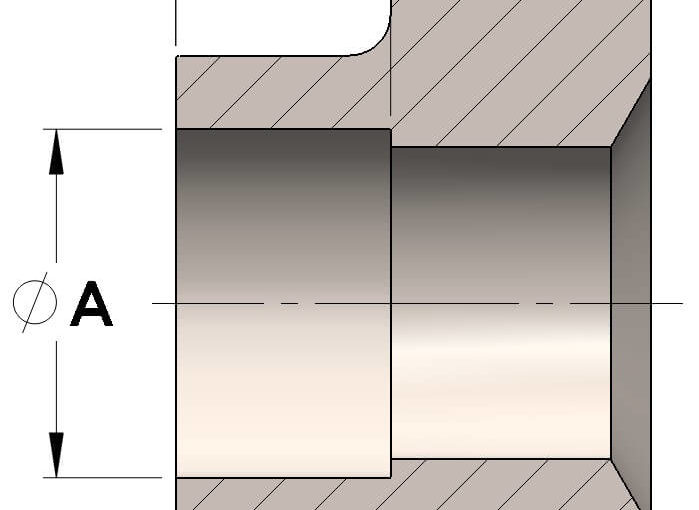

Dimensions

A 0.750
C 0.88
D 0.440

General

Pressure Rating 6000 PSI
Tailpiece Material 316/L Stainless Steel, ASTM A276, UNS S31600/03

cpvmfg.com | 484.731.4010

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Caution: Do not mix or interchange valve components with those of other manufacturers.
