Fittings / Mark VIII® / H851R-10-04-S

Socketweld Pipe Tailpiece

Data sheet
American Engineering Trusted Wordwide ®

DATA SHEET

H851R-10-04-S
11/07/2025 11:36 AM

Product Category H851R-10-04-S
Part Description Socketweld Pipe Tailpiece

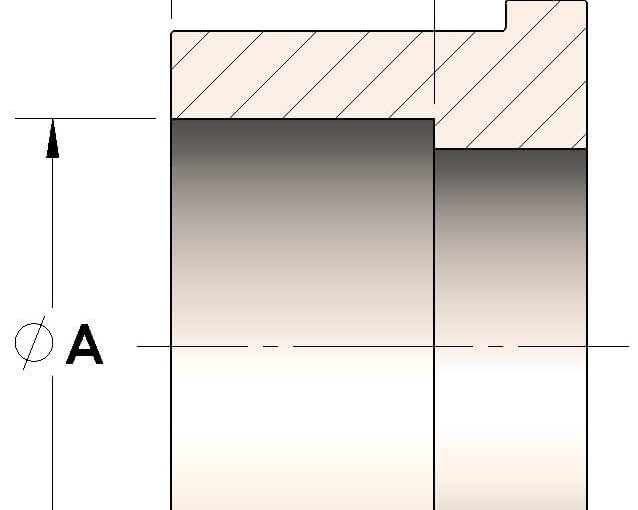

Dimensions

A 0.545
C 0.63
D 0.380
Union Nut Size -10
Mark VIII Dash -4

General

Pressure Rating 6000 PSI
Tailpiece Material Carbon Steel, ASTM A108

cpvmfg.com | 484.731.4010

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Caution: Do not mix or interchange valve components with those of other manufacturers.
