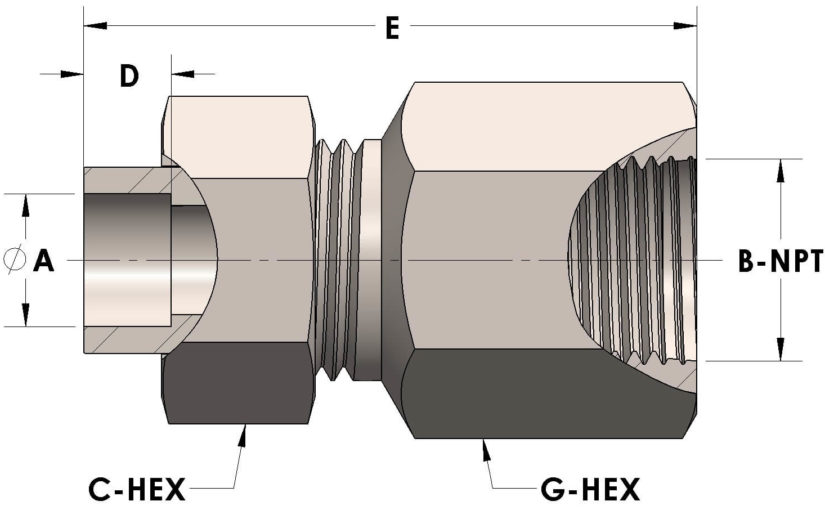

Dimensions
| A | 1 |
| B-NPT | 1.000" - 11.5 |
| C-HEX | 1.63 |
| D | 0.5 |
| E | 2.88 |
| G-HEX | 1.75 |
General
| Pressure Rating | 3000 PSI |
| Assembly Material | Carbon Steel, ASTM A108 |
| O-Ring Material | Viton® Fluorocarbon Type 1, Class 2 (90 durometer) |
| Connection 1 Type | Female Tube Socket |
| Connection 1 Size | 1" Tube O.D. (-16) |
| Connection 2 Type | Female Pipe Thread |
| Connection 2 Size | 1" NPT (-16) |
