Fittings / Mark VIII® / H859-10-10-S

Tube to Male Straight Thread Union Assembly

Data sheet
American Engineering Trusted Wordwide ®

DATA SHEET

H859-10-10-S
11/06/2025 7:29 PM

Product Category H859-10-10-S
Part Description Tube to Male Straight Thread Union Assembly

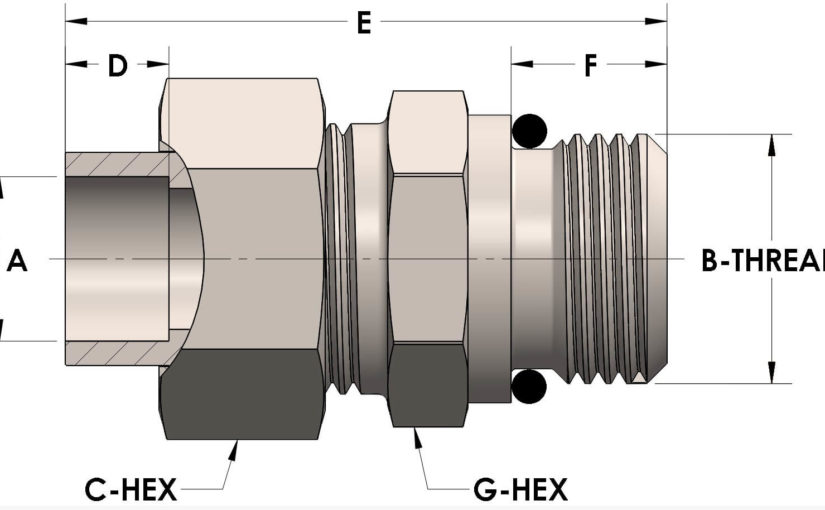

Dimensions

A 0.630
B-THREAD .875" - 14UNF
C-HEX 1.13
D 0.380
E 2.06
G-HEX 1.06

General

Pressure Rating 4500 PSI
Assembly Material Carbon Steel, ASTM A108
O-Ring Material Viton® Fluorocarbon Type 1, Class 2 (90 durometer)
Connection 1 Type Female Tube Socket
Connection 1 Size 5/8" Tube O.D. (-10)
Connection 2 Type Male Straight Thread
Connection 2 Size .875" - 14UNF (-10)

cpvmfg.com | 484.731.4010

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Caution: Do not mix or interchange valve components with those of other manufacturers.
