Fittings / Mark VIII® / H863-24-M

Socketweld/braze Tube to Male Tube Union Assembly

Data sheet
American Engineering Trusted Wordwide ®

DATA SHEET

H863-24-M
11/06/2025 5:06 PM

Product Category H863-24-M
Part Description Socketweld/braze Tube to Male Tube Union Assembly

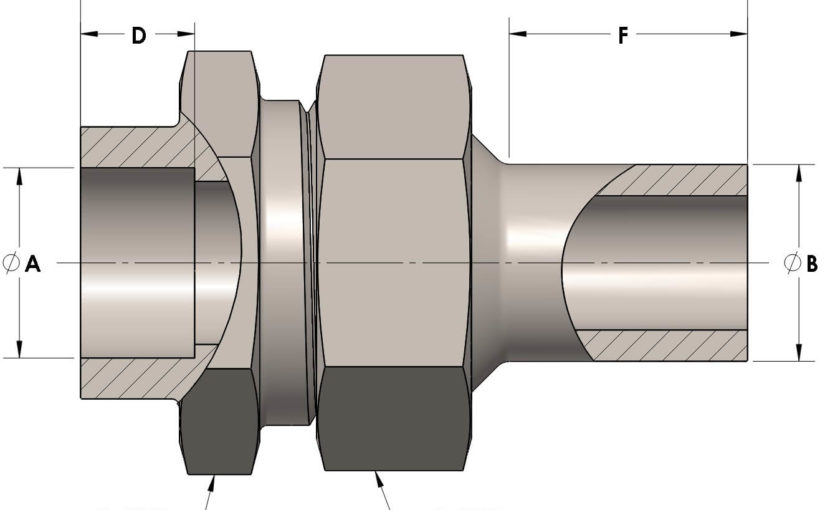

Dimensions

A 1.500
B 1.50
C-HEX 2.38
D 0.630
E 3.44
F 1.38
G-HEX 2.25

General

Pressure Rating 4500 PSI
Assembly Material Monel®, ASTM B164, UNS N04405
O-Ring Material Viton® Fluorocarbon Type 1, Class 2 (90 durometer)
Connection 1 Type Female Tube Socket
Connection 1 Size 1.50" Tube O.D. (-24)
Connection 2 Type Female Tube Socket
Connection 2 Size 1.50" Tube O.D. (-24)

cpvmfg.com | 484.731.4010

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Caution: Do not mix or interchange valve components with those of other manufacturers.
