Fittings / Mark VIII® / H863R-32-M

Male Tube Weld Tailpiece

Data sheet
American Engineering Trusted Wordwide ®

DATA SHEET

H863R-32-M
11/07/2025 10:45 AM

Product Category H863R-32-M
Part Description Male Tube Weld Tailpiece

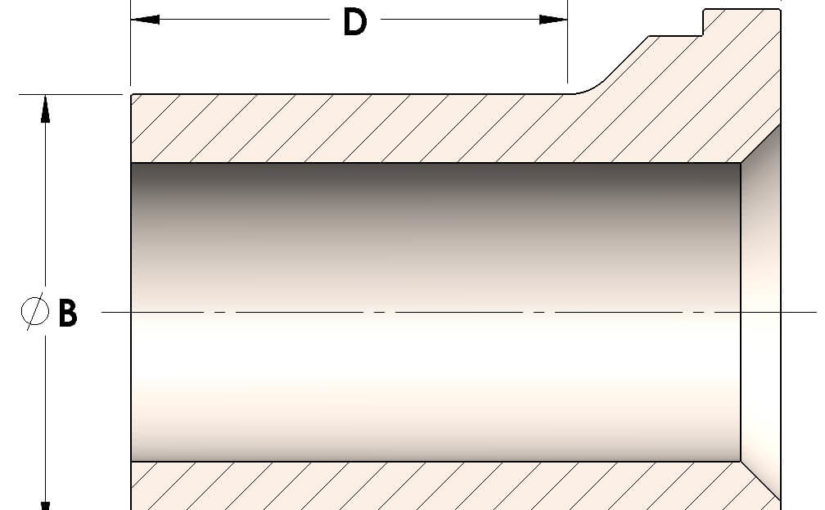

Dimensions

B 2.00
C 2.25
D 1.560

General

Pressure Rating 4500 PSI
Tailpiece Material Monel®, ASTM B164, UNS N04405

cpvmfg.com | 484.731.4010

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Caution: Do not mix or interchange valve components with those of other manufacturers.
