Fittings / Mark VIII® / H864-02-04-SS316L

Tube to Female Straight Thread Union Assembly

Data sheet
American Engineering Trusted Wordwide ®

DATA SHEET

H864-02-04-SS316L
11/07/2025 8:06 AM

Product Category H864-02-04-SS316L
Part Description Tube to Female Straight Thread Union Assembly

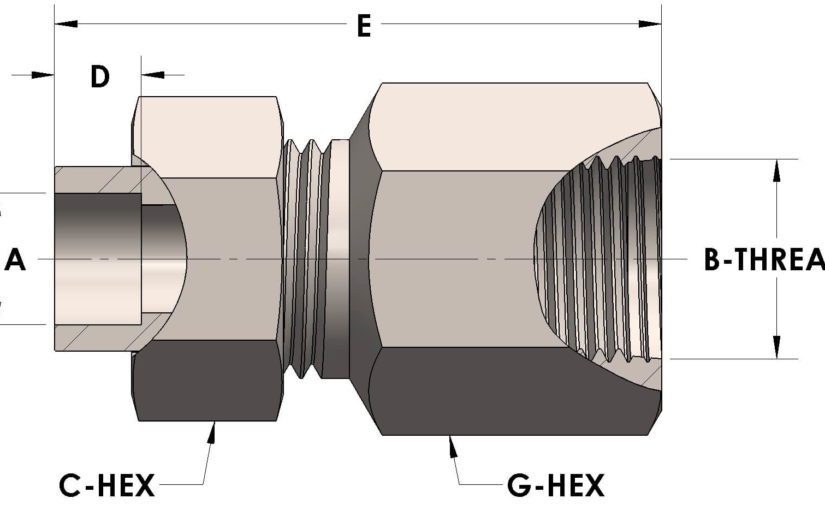

Dimensions

A 0.130
B-THREAD .438" - 20UINF
C-HEX 0.63
D 0.190
E 1.50
G-HEX 0.75

General

Pressure Rating 6000 PSI
Assembly Material 316/L Stainless Steel, ASTM A276, UNS S31600/03
O-Ring Material Viton® Fluorocarbon Type 1, Class 2 (90 durometer)
Connection 1 Type Female Tube Socket
Connection 1 Size 1/8” Tube O.D. (-02)
Connection 2 Type Female Straight Thread
Connection 2 Size .438" - 20UINF (-04)

cpvmfg.com | 484.731.4010

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Caution: Do not mix or interchange valve components with those of other manufacturers.
