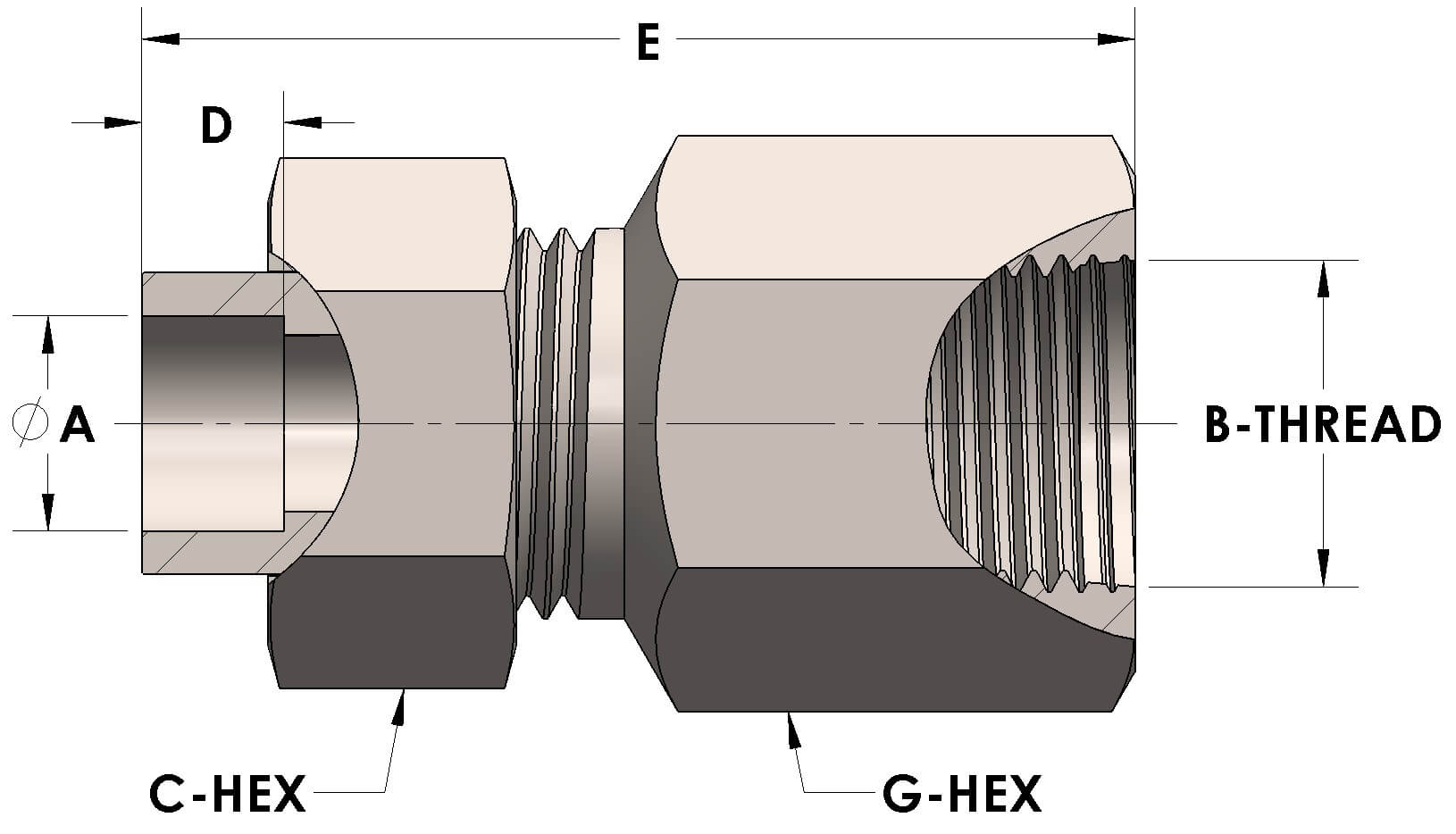

Dimensions
| A | 0.5 |
| B-THREAD | .750" - 16UNF |
| C-HEX | 0.94 |
| D | 0.31 |
| E | 2 |
| G-HEX | 1.06 |
General
| Pressure Rating | 4500 PSI |
| Assembly Material | Carbon Steel, ASTM A108 |
| O-Ring Material | Viton® Fluorocarbon Type 1, Class 2 (90 durometer) |
| Connection 1 Type | Female Tube Socket |
| Connection 1 Size | 1/2" Tube O.D. (-08) |
| Connection 2 Type | Female Straight Thread |
| Connection 2 Size | .750" - 16UNF (-08) |
