Fittings / Direct Weld® / H866-08-04-SS316L

Direct Weld/Braze Insert (Male Tube X Pipe SW)

Data sheet
American Engineering Trusted Wordwide ®

DATA SHEET

H866-08-04-SS316L
11/06/2025 10:27 PM

Product Category H866-08-04-SS316L
Part Description Direct Weld/Braze Insert (Male Tube X Pipe SW)

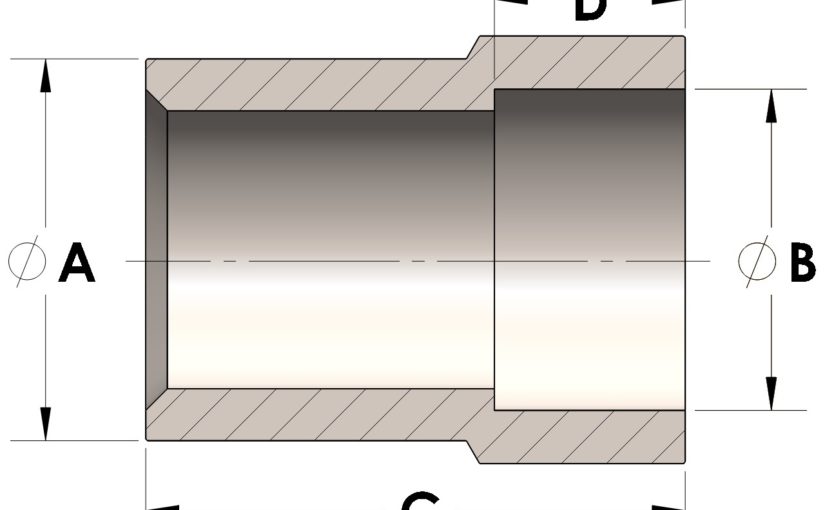

Dimensions

A 0.500
B 0.55
C 1.19
D 0.380

General

Pressure Rating 3000 PSI
Fitting Material 316/L Stainless Steel, ASTM A276, UNS S31600/03
